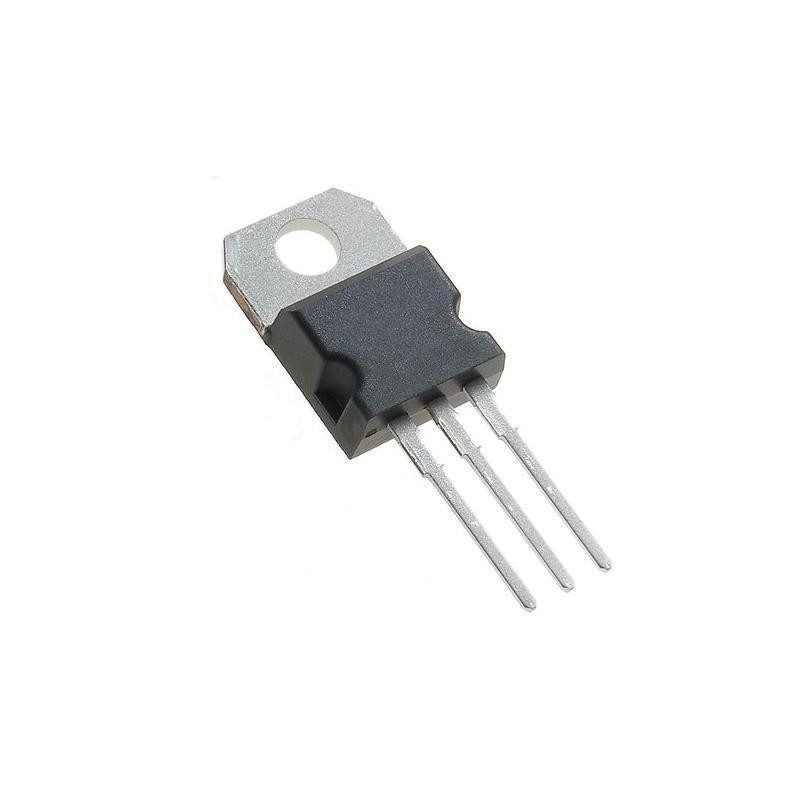

Симистор MAC16M TO220AB

Maximum peak gate power (P_GM): 20 W

Maximum repetitive peak and off-state voltage (V_DRM): 600 V

Maximum RMS on-state current (I_T(RMS)): 15 A

Non repetitive surge peak on-state current (I_TSM): 150 A

Critical repetitive rate of rise of on-state current (dI/dt): 9 A/µs

Critical rate of rise of off-state voltage (dV/dt): 500 V/µs

Maximum operating junction and storage temperature range (T_stg, T_j): -40..125 °C

Junction to ambient thermal resistance (R_TH(j-a)): 62.5 K/W

Junction to case thermal resistance (R_TH(j-c)): 2 K/W

Triggering gate voltage (V_GT): 0.75 V

Peak on-state voltage drop (V_TM): 1.2 V

Triggering gate current (I_GT): 16 mA

Holding current (I_H): 20 mA

Package: TO-220AB
